Orange safety netting, yellow and orange barrier netting Base jacks, formwork, scaffolding accessories Combi nuts, Tie nut, formwork, scaffolding accessories Swivel Couplers, Fixed Couplers, formwork, scaffolding accessories Nagaki Wire Grips for bare copper cable, covered conductor, messenger wire to aerial bundled cable RMCS Nagaki Wire Grip Brochuure 1 RMCS Nagaki Wire Grip Brochuure 2 Nagaki Wire Grips from 1 to 4 ton wire gripping
Nagaki Wire Grip Models:

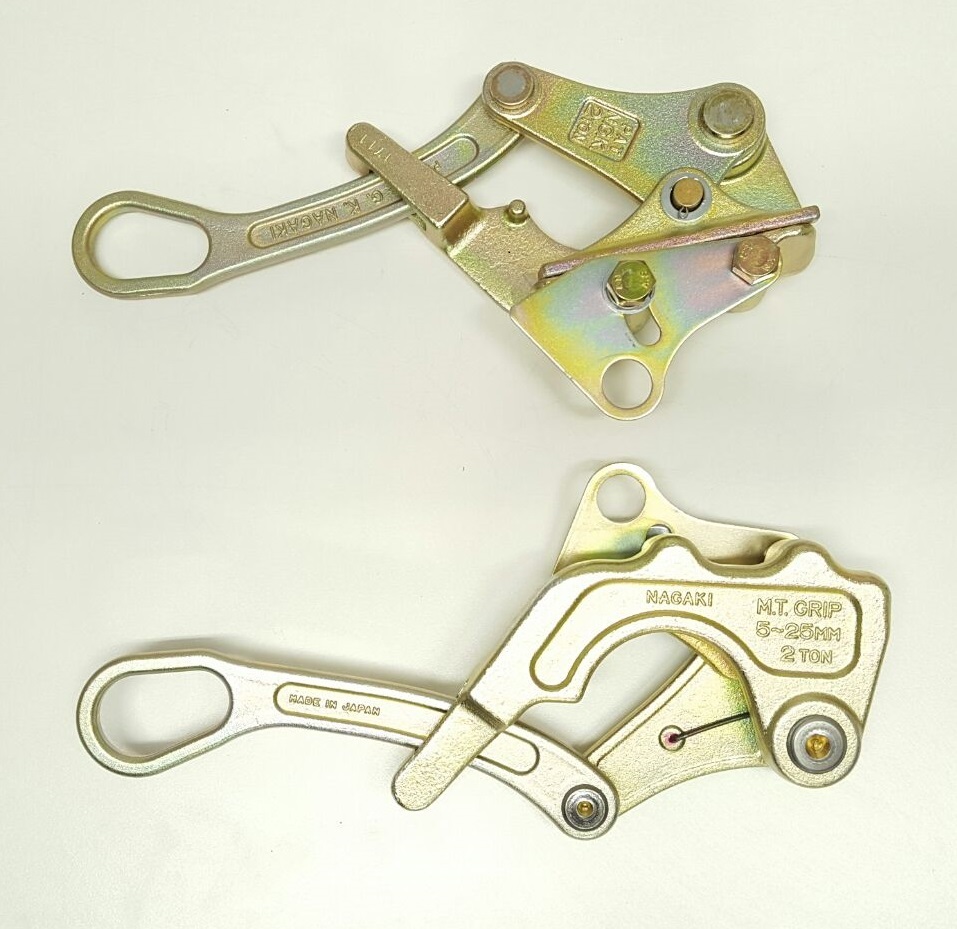

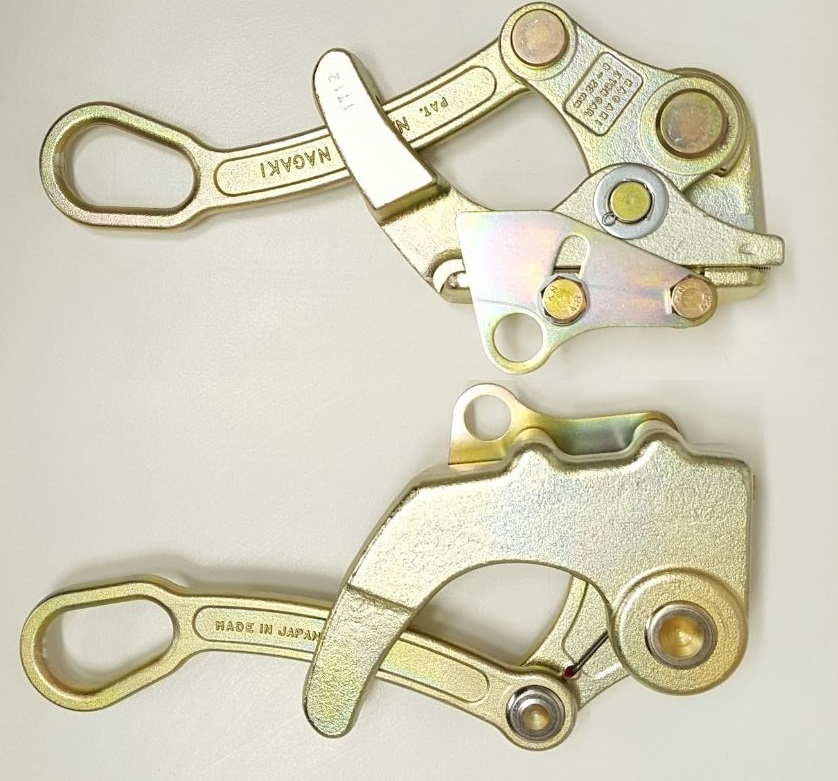

RMCS stocks a wide range of NGK Wire Grips – from the 1 tonne L-Grip which can be used for bare copper cable, covered conductor and messenger wire – to the ABC Grip which is used for aerial bundled cable – to the 4 tonne Wire Grip which can handle cables measuring up to 28mm in diameter.

All of the models are rated for a variety of wire sizes and types – that means fewer wire grips are needed.

Due to its instant release system, NGK Wire Grips can be inserted or removed from a wire with ease. The grips have large eye openings that are compatible with standard hooks and easily attach to all model pullers.

The RMCS range of NGK (NAGAKI) wire grips are made from forged steel. They are durable yet lightweight and feature a Chromate finish that protects them from rust and corrosion
Product Code
Description
MINI-GRIP
MINI GRIP - Nagaki wire grip with safety latch - safe load: 5Kn (0.5 Ton) For steel rod, barbed wire and messenger wire, weight 0.3 kgs.
SD-L-GRIP
SD-L-GRIP - Nagaki wire grip with safety latch - safe load: 10Kn (1.0 Ton) For steel rod, copper cable and messenger wire, weight 0.6 kgs.
1TON-L-GRIP
1TON-L-GRIP- Nagaki wire grip with safety latch - safe load: 10Kn (1.0 Ton) For bare copper cable, covered conduct0r and messenger wire, weight 1.1 kgs.
2TON-L-GRIP
2TON-L-GRIP- Nagaki wire grip with safety latch - safe load: 20Kn (2.0 Tonn) For bare copper cable, covered conductor and messenger wire, weight 1.3 kgs.
3TON-GRIP
3TON-GRIP- Nagaki wire grip with safety latch - safe load: 30Kn (3.0 Ton) For wire rope, messenger wire, copper cable and trolley cable, weight 3.0 kgs.
4TON-GRIP
4TON-GRIP- Nagaki wire grip with safety latch - safe load: 40Kn (4.0 Ton) For wire rope, messenger wire, copper cable and trolley cable, weight 5.0 kgs.

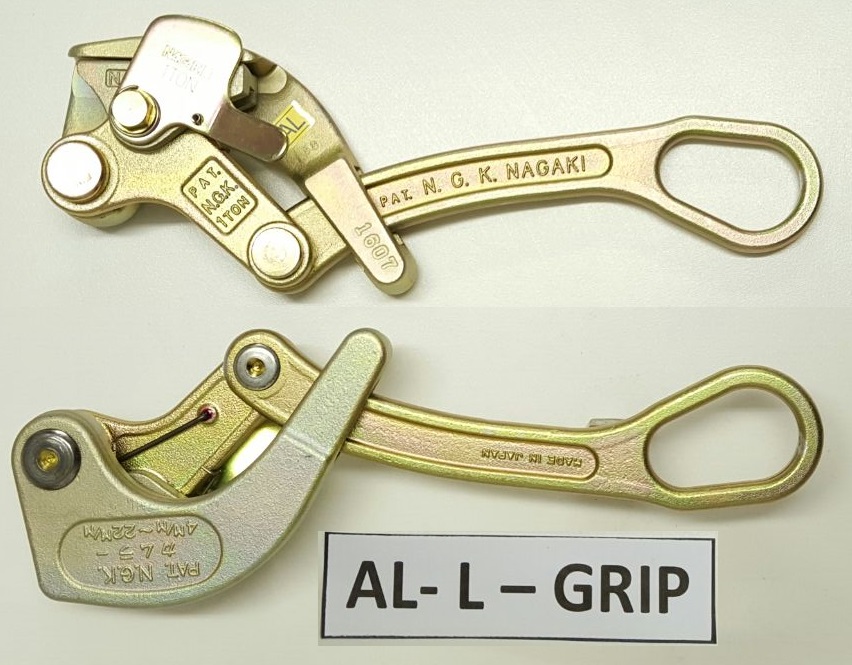

AL-L-GRIP
AL-L-GRIP- Nagaki wire grip with safety latch - safe load: 10Kn (1.0 Ton) For wire rope, messenger wire, copper cable and trolley cable, weight 5.0 kgs.
AL-LARGE-GRIP
AL-LARGE-GRIP- Nagaki wire grip with safety latch - safe load: 20Kn (2.0 Ton) For bare aluminium and bare copper cable, minimal damage to conductor, weight 1.1 kgs.
LARGE-L-GRIP
LARGE-L-GRIP- Nagaki wire grip with safety latch - safe load: 20KN(2.0T) For copper cable and covered conductor, weight 2,1 kgs.
MESSEN-L-GRIP
MESSEN-L-GRIP- Nagaki wire grip with safety latch - safe load: 10Kn (1.0 Ton) For copper cable and messenger wire weight 0,7 kgs.
MIDDLE-L-GRIP
MIDDLE-L-GRIP- Nagaki wire grip with safety latch - safe load: 20Kn (2.0 Ton) For copper cable, covered conductor and messenger wire weight 1,8 kgs.
Nagaki Wire Grips for multi purpose wire gripping
Nagaki 1 tonne L-Grip:
For bare copper cable, covered conductor and messenger wire.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
10kN (1.0t)
4mm
22mm
1.1kgs
Nagaki Wire Grips for bare aluminum cable, and bare copper cable.
Nagaki AL- Middle - Grip:
For bare aluminum cable, and bare copper cable.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
20kN (2.0t)
5mm
25mm
1.8kgs
Nagaki Wire Grips for bare copper cable, covered conductor and messenger wire.

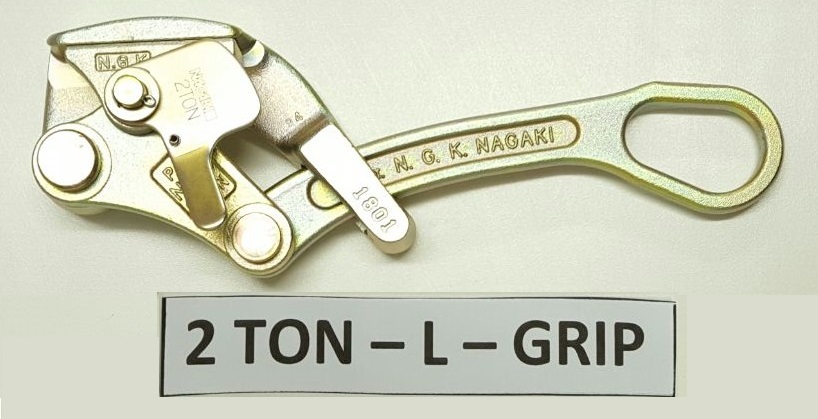

Nagaki 2 tonne L-Grip:
For bare copper cable, covered conductor and messenger wire.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
20kN (2.0t)
4mm
22mm
1.3kgs
Nagaki Wire Grips for bare aluminum cable, and bare copper cable.
Nagaki AL- Large - Wire Grip:
For bare aluminum cable, and bare copper cable.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
20kN (2.0t)
16mm
32mm
2.0kgs
Nagaki Wire Grips for bare copper cable, covered conductor and messenger wire.

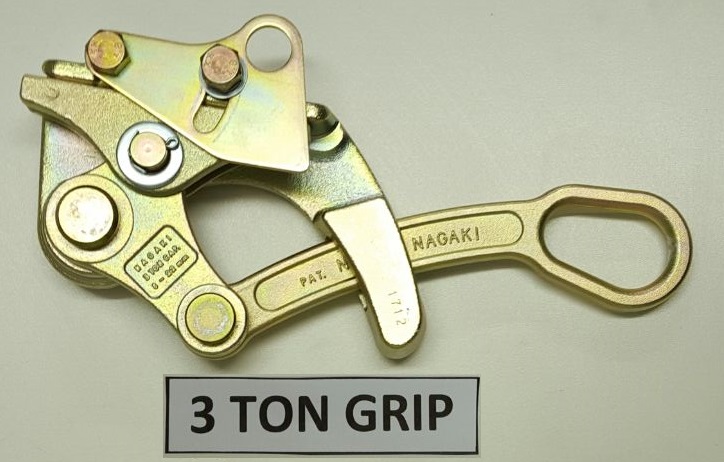

Nagaki 3 tonne Wire Grip:
For wire rope, messenger wire, copper cable and trolley cable.
Nagaki Wire Grips 34mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
30kN (3.0t)
8mm
22mm
3.0kgs
Nagaki Wire Grips for wire rope, messenger wire, copper cable and trolley cable..

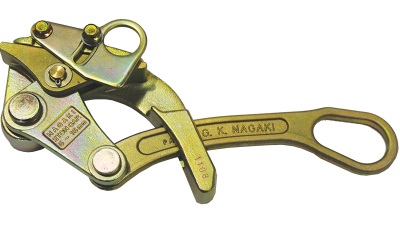

Nagaki 2 Ton W Wire Grip:
For wire rope, messenger wire, copper cable and trolley cable.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
20kN (2.0t)
5mm
16mm
1.4kgs
Nagaki Wire Grips for wire rope, messenger wire, copper cable and trolley cable..

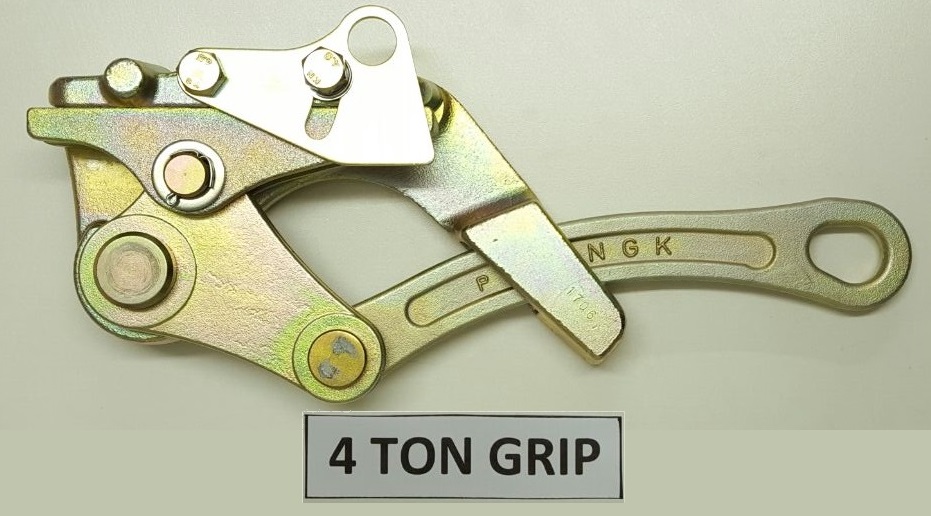

Nagaki 4-Ton Wire Grip:
For wire rope, messenger wire, copper cable and trolley cable.
Nagaki Wire Grips 25mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
40kN (4.0t)
13mm
28mm
5.0kgs
Nagaki Wire Grips for steel rod, copper cable and messenger wire.
Nagaki SD-L-Grip:
For steel rod, copper cable and messenger wire.
Nagaki Wire Grips 26mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
10kN (1.0t))
2.6mm
15mm
0.6kgs
Nagaki Wire Grips for copper cable, covered conductor and messenger wire.
Nagaki Middle L - Wire Grip:
For copper cable, covered conductor and messenger wire.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
20kN (2.0t)
5mm
25mm
1.8kgs
Nagaki Wire Grips for copper cable and covered conductor.

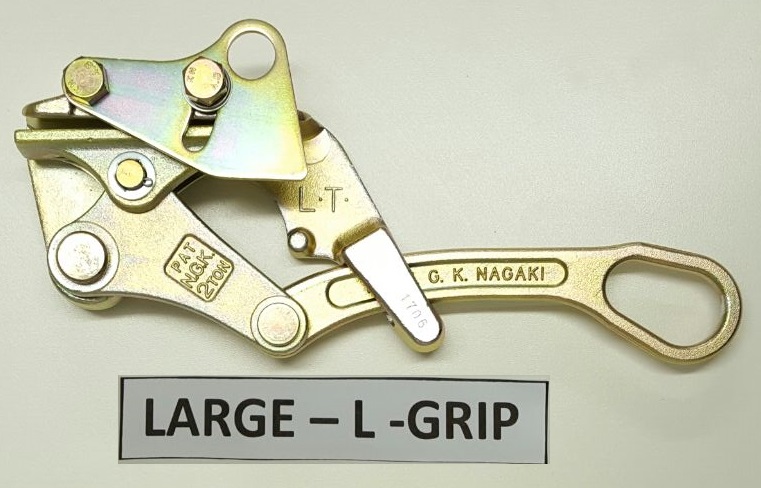

Nagaki Large-L Wire Grip:
For copper cable and covered conductor.
Nagaki Wire Grips 32mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
20kN (2.0t)
16mm
32mm
2.1kgs

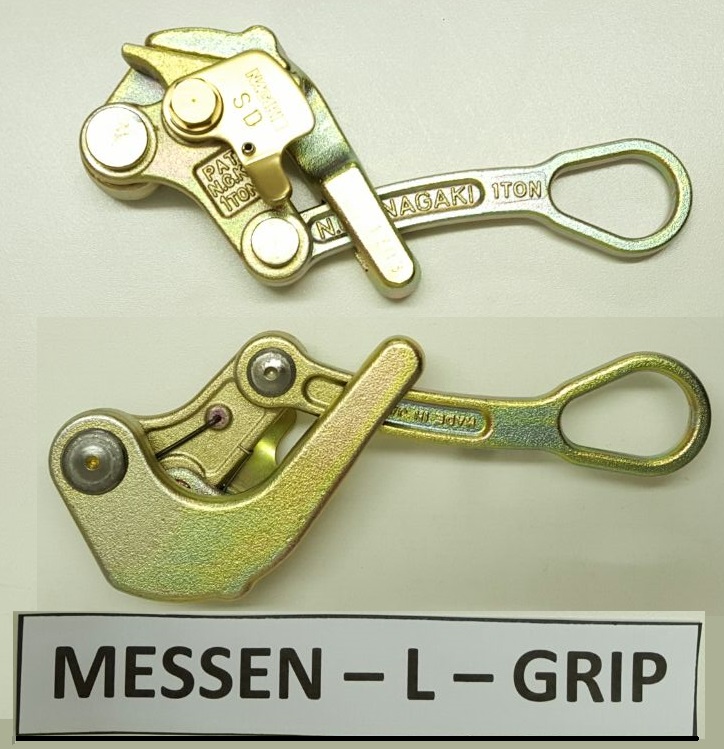

Nagaki Wire Grips for copper cable and messenger wire.
Nagaki Messen-L Wire Grips:
For copper cable and messenger wire.
Nagaki Wire Grips 26mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
10kN (1.0 ton)
4mm
12mm
0.7kgs
Nagaki Wire Grips for steel rod, barbed wire and messenger wire.
Nagaki Large-L Wire Grip:
For steel rod, barbed wire and messenger wire.
Nagaki Wire Grips 25mm large eye lever
Safe Working Load
Min. Cable Dia.
Max. Cable Dia.
Weight
5kN (0,5 ton)
1mm
10mm
0,3kgs
Click on left PDF icon to download RMCS Nagaki Brochure 1.
RMCS Nagaki Wire Grip Brochuure 1 RMCS Nagaki Wire Grip Brochuure 2
Click on right PDF icon to download RMCS Nagaki Brochure 2.
